The recommended number of carbon fiber layers for reinforcing beam members is not fixed and depends on factors such as the beam’s original condition, reinforcement objectives (e.g., improving flexural, shear, or ductility performance), design codes, and the type of carbon fiber material used.

However, general guidelines based on industry standards (e.g., China’s GB 50367, ACI 440 in the U.S.) and practical experience are as follows:

General Limits on Layers

Most design codes restrict the number of carbon fiber fabric layers to 4 layers or fewer for beam reinforcement. This is because:

• Excessive layers (more than 4) increase construction difficulty, making it hard to ensure full bonding between layers and the concrete substrate, which can lead to delamination, hollowing, or reduced effectiveness.

• Beyond 4 layers, the incremental strength gain diminishes, and preformed carbon fiber plates (stiffer and easier to install in thick sections) are typically recommended instead.

Typical Layer Ranges by Reinforcement Scenario

• Minor reinforcement (e.g., compensating for small design flaws, slight aging):1–2 layers are usually sufficient. This meets basic strength improvements while keeping construction simple and cost-effective.

• Moderate reinforcement (e.g., increasing load capacity for moderate load increments, repairing moderate damage):3–4 layers may be needed. This is common when calculations show a significant need to enhance flexural or shear capacity (e.g., in beams supporting heavier equipment or increased traffic).

• Special cases (e.g., severe damage or large load increases):If 4 layers are insufficient, design codes typically require switching to carbon fiber plates or combining carbon fiber with other methods (e.g., steel plates) rather than adding more fabric layers.

Key Considerations

• Material type: Carbon fiber fabrics are categorized by areal weight (e.g., 300 g/m², 600 g/m²). Heavier fabrics (e.g., 600 g/m²) provide more strength per layer, so fewer layers may suffice compared to lighter ones (e.g., 300 g/m²).

• Structural calculations: The exact number of layers must be determined through professional structural analysis, considering the beam’s original strength, target capacity, and stress distribution.

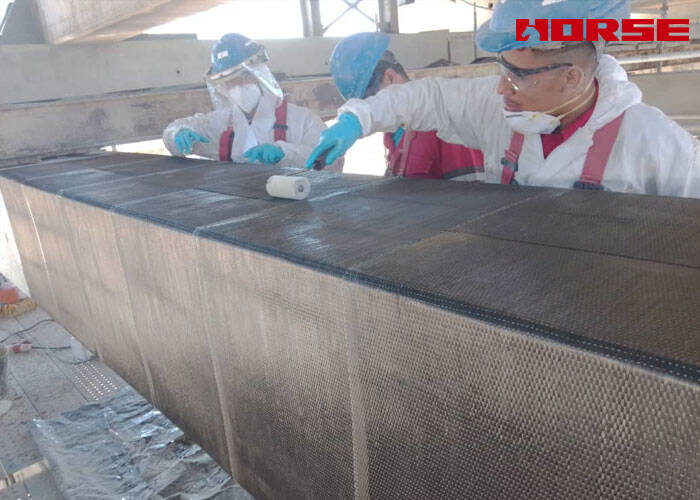

• Construction quality: For 3–4 layers, ensure proper epoxy saturation between layers and adequate curing time between applications to avoid bonding failures.

The recommended number of carbon fiber layers for beam reinforcement is 1–4 layers, with 1–2 layers for minor needs and 3–4 layers for moderate requirements. Always confirm the exact number through engineering calculations and adherence to local design codes.
